VUPO GH3 6-32UNC | YAMAWA MFG. Co., Ltd.

【英】タップ詳細

ANSIZ-PRO Coated Spiral Pointed Taps

Design for Taps

Product code：5102103023

Manufacturer's Suggested Retail Price (MSRP*)：JPY-

PDF Catalog	PDF
3D CAD	3D：STEP｜3D：PDF

※MSRP is for reference purposes only. Please consult your local distributor for pricing.
Pricing outside Japan may vary due to each country's tax schedule,
tariffs, import/shipping charges, and duties imposed by customs.

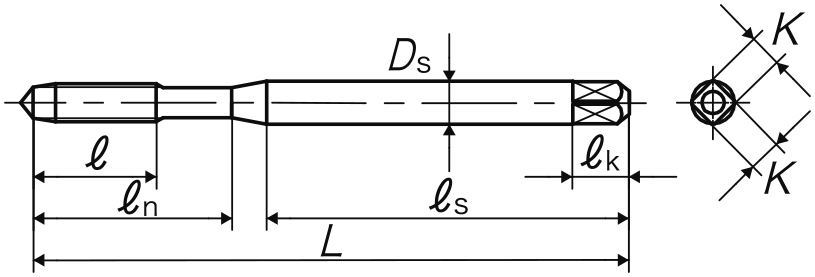

Spec

Overall length(L)	2.205 inch
Thread length(ℓ)	0.433 inch
Thread+Neck length(ℓn)	0.748 inch
Shank length(ℓs)	1.339 inch
Shank dia.(Ds)	0.141 inch
Length of square(ℓk)	0.187 inch
Size of square(K)	0.11 inch

Surface Treatment	Coating
Flute type	PO(Spiral Pointed Taps for through hole)
Materials	HSS-P
Chamfer length	5P
Number of flutes	2
Gross Weight	5 g
Bored hole size	0.112 inch
Engagement ratio	64 %
(D1)Max.	0.114 inch
(D1)Min.	0.104 inch

Table of tapping speed recommended for each work material

Low carbon steels	5～10 m/min
Medium carbon steels	5～10 m/min
High carbon steels	5～10 m/min
Alloy steels	5～10 m/min
Heat treated steel (25〜35HRC)
Heat treated steel (35〜45HRC)
Heat treated steel (45〜55HRC)
Heat treated steel (55〜63HRC)
Stainless steels (SUS)	1～2.5 m/min
Tool steels	1～2.5 m/min
Cast steels
Cast irons
Ductile cast irons	5～15 m/min

Copper
Brass
Brass castings
Bronze
Wrought aluminum	5～16 m/min
Aluminum alloy castings	5～16 m/min
Magnesium alloy die castings
Zinc alloy die castings
Titanium alloys
Nickel base alloys
Thermosetting plastic
Thermoplastic resin
