MC-AD-CT P4 M10X1.25 1.5P | YAMAWA MFG. Co., Ltd.

【英】タップ詳細

JISCarbide Taps with Oil Hole

Design for Taps

Product code：MCADS010N1

Manufacturer's Suggested Retail Price (MSRP*)：JPY35,200

Stock	While supplies last (Discontinued)
PDF Catalog	PDF
2D CAD	2D：DXF｜2D：PDF
3D CAD	3D：STEP｜3D：PDF

※MSRP is for reference purposes only. Please consult your local distributor for pricing.
Pricing outside Japan may vary due to each country's tax schedule,
tariffs, import/shipping charges, and duties imposed by customs.

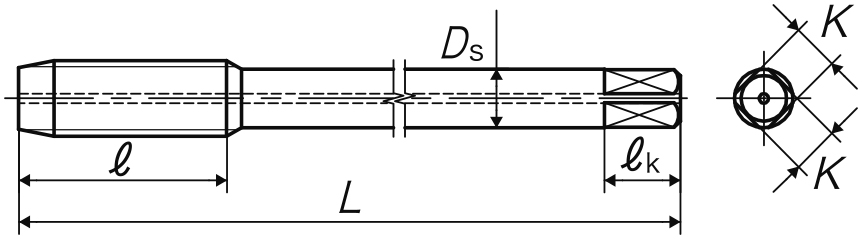

Spec

Overall length(L)	100 mm
Thread length(ℓ)	22 mm
Shank dia.(Ds)	7 mm
Length of square(ℓk)	8 mm
Size of square(K)	5.5 mm

Feed system	For synchronous feeding
Surface Treatment	Coating
Flute type	HT(Hand Taps)
Materials	Carbide
Chamfer length	1.5P
Number of flutes	3
Gross Weight	59 g
Bored hole size	8.85 mm
Engagement ratio	85 %
(D1)Max.	8.912 mm
(D1)Min.	8.647 mm

Table of tapping speed recommended for each work material

Low carbon steels
Medium carbon steels
High carbon steels
Alloy steels
Heat treated steel (25〜35HRC)
Heat treated steel (35〜45HRC)
Heat treated steel (45〜55HRC)
Heat treated steel (55〜63HRC)
Stainless steels (SUS)
Tool steels
Cast steels
Cast irons
Ductile cast irons

Copper
Brass
Brass castings
Bronze
Wrought aluminum	30～60 m/min
Aluminum alloy castings	30～60 m/min
Magnesium alloy die castings
Zinc alloy die castings	30～60 m/min
Titanium alloys
Nickel base alloys
Thermosetting plastic
Thermoplastic resin
