NPSF 1/8-27NPSF BR (S.S.) | YAMAWA MFG. Co., Ltd.

【英】タップ詳細

ANSIHand Taps for American Dryseal Parallel Pipe Threads

Design for Taps

Product code：Y83327BR

Manufacturer's Suggested Retail Price (MSRP*)：JPY-

PDF Catalog	PDF
2D CAD	2D：DXF｜2D：PDF
3D CAD	3D：STEP｜3D：PDF

※MSRP is for reference purposes only. Please consult your local distributor for pricing.
Pricing outside Japan may vary due to each country's tax schedule,
tariffs, import/shipping charges, and duties imposed by customs.

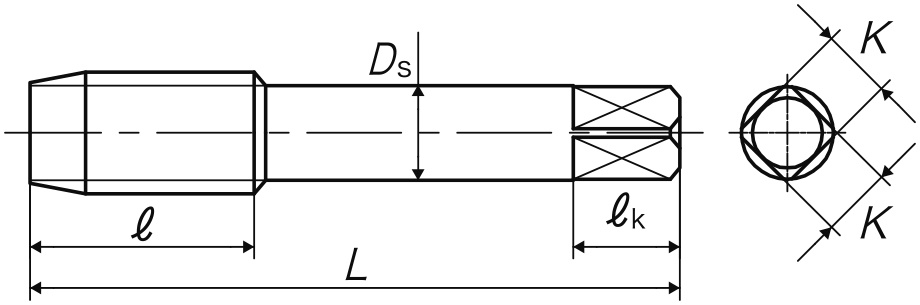

Spec

Overall length(L)	2.125 inch
Thread length(ℓ)	0.75 inch
Shank dia.(Ds)	0.312 inch
Length of square(ℓk)	0.375 inch
Size of square(K)	0.234 inch

Flute type	HT(Hand Taps)
Materials	HSS
Chamfer length	4P
Number of flutes	4
Gross Weight	31 g
Bored hole size	0.3432 inch
(D1)Max.	0.3441 inch
(D1)Min.	0.3406 inch
