LS-N-RZ L100 G6 M5X0.8 (B)

【英】タップ詳細

JISLong Shank Thread Forming Taps for Steels

Design for Taps
NRZF65.0KB10

Product code:NRZF65.0KB10

Manufacturer's Suggested Retail Price (MSRP*):JPY3,020

StockLimited distribution's stock
PDF CatalogPDF
2D CAD2D:DXF2D:PDF
3D CAD3D:STEP3D:PDF
※MSRP is for reference purposes only. Please consult your local distributor for pricing.
Pricing outside Japan may vary due to each country's tax schedule,
tariffs, import/shipping charges, and duties imposed by customs.

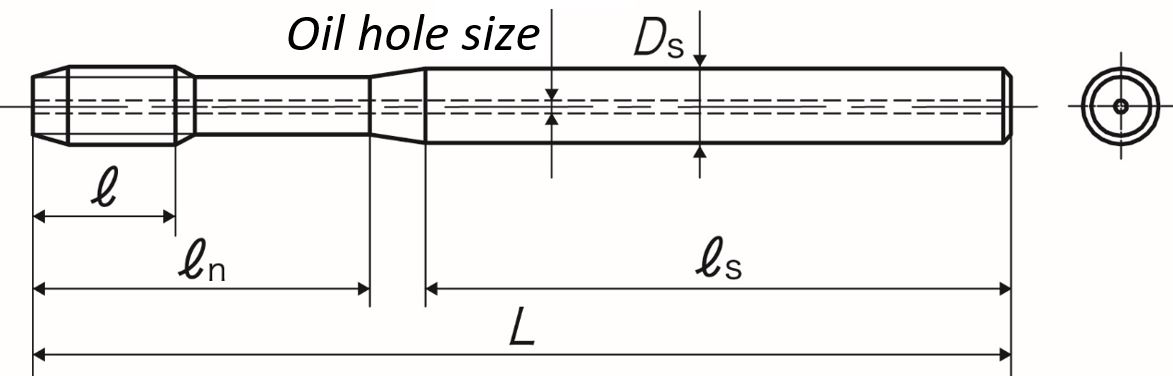

Spec

Overall length(L)100 mm
Thread length(ℓ)13 mm
Thread+Neck length(ℓn)25 mm
Shank length(ℓs)40 mm
Shank dia.(Ds)5.5 mm
Length of square(ℓk)7 mm
Size of square(K)4.5 mm
Surface TreatmentOX
Flute typeROLL(Forming Taps)
MaterialsHSS
Chamfer length2P
Number of flutes4
Gross Weight19 g
Bored hole size4.65 mm
Engagement ratio86 %
(D1)Max.4.334 mm
(D1)Min.4.134 mm

Table of tapping speed recommended for each work material

Low carbon steels4~12 m/min
Medium carbon steels4~12 m/min
High carbon steels
Alloy steels
Heat treated steel (25〜35HRC)
Heat treated steel (35〜45HRC)
Heat treated steel (45〜55HRC)
Heat treated steel (55〜63HRC)
Stainless steels (SUS)
Tool steels
Cast steels
Cast irons
Ductile cast irons
Copper
Brass
Brass castings
Bronze
Wrought aluminum
Aluminum alloy castings
Magnesium alloy die castings
Zinc alloy die castings
Titanium alloys
Nickel base alloys
Thermosetting plastic
Thermoplastic resin
