LS-SU-S-PO L200 P4 M20X1.5 | YAMAWA MFG. Co., Ltd.

【英】タップ詳細

JISLong Shank Spiral Pointed Taps for Stainless Steels, Deep Hole Use

Design for Taps

Product code：PY020OSGEXKS

Manufacturer's Suggested Retail Price (MSRP*)：JPY36,500

Stock	Limited distribution's stock
PDF Catalog	PDF
2D CAD	2D：DXF｜2D：PDF
3D CAD	3D：STEP｜3D：PDF

※MSRP is for reference purposes only. Please consult your local distributor for pricing.
Pricing outside Japan may vary due to each country's tax schedule,
tariffs, import/shipping charges, and duties imposed by customs.

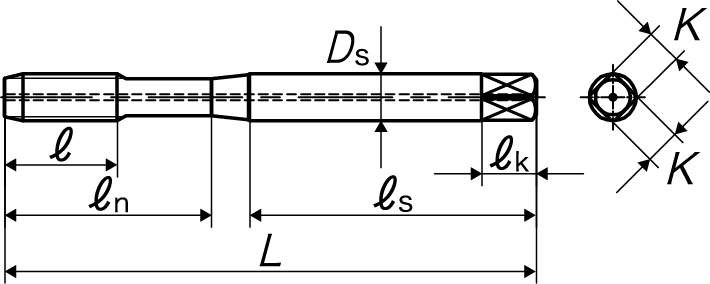

Spec

Overall length(L)	200 mm
Thread length(ℓ)	14 mm
Shank length(ℓs)	70 mm
Shank dia.(Ds)	15 mm
Length of square(ℓk)	15 mm
Size of square(K)	12 mm

Surface Treatment	OX
Flute type	PO(Spiral Pointed Taps for through hole)
Materials	HSS
Chamfer length	5P
Number of flutes	3
Gross Weight	266 g
Bored hole size	18.60 mm
Engagement ratio	86 %
(D1)Max.	18.676 mm
(D1)Min.	18.376 mm

Table of tapping speed recommended for each work material

Low carbon steels	5～10 m/min
Medium carbon steels	5～10 m/min
High carbon steels	5～10 m/min
Alloy steels
Heat treated steel (25〜35HRC)
Heat treated steel (35〜45HRC)
Heat treated steel (45〜55HRC)
Heat treated steel (55〜63HRC)
Stainless steels (SUS)	～5 m/min
Tool steels
Cast steels
Cast irons
Ductile cast irons

Copper
Brass
Brass castings
Bronze
Wrought aluminum
Aluminum alloy castings
Magnesium alloy die castings
Zinc alloy die castings
Titanium alloys
Nickel base alloys
Thermosetting plastic
Thermoplastic resin
