JO-CDS Type B 3 X 60°

【英】センタ穴ドリル詳細

Joint- Low Helix Center Drills-Type B 60° , (Old JIS Type 2)

Design for Taps
JC23.0

Product code:JC23.0

Manufacturer's Suggested Retail Price (MSRP*):JPY4,040

Stock Distribution's stock
PDF Catalog PDF
2D CAD 2D:DXF2D:PDF
3D CAD 3D:STEP3D:PDF
※MSRP is for reference purposes only. Please consult your local distributor for pricing.
Pricing outside Japan may vary due to each country's tax schedule,
tariffs, import/shipping charges, and duties imposed by customs.

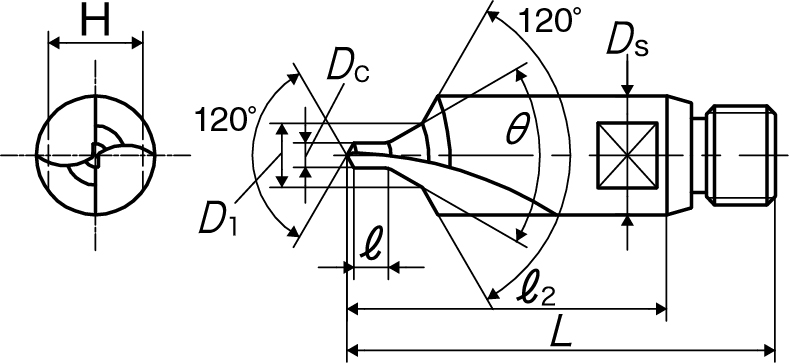

Spec

Shank dia. (Ds) 16 mm
Drill dia (Dc) 3 mm
D1 8 mm
Overall length (L) 48.5 mm
Drill length (ℓ) 4 mm
ℓ2 34.5 mm
H 13 mm
Angle (θ) 60°
Materials HSS
Gross Weight 62 g
