JO-CDS V 6X60ﾟ | YAMAWA MFG. Co., Ltd.

【英】センタ穴ドリル詳細

Joint- Low Helix Center Drills-Type A 60° , Coated

Design for Center drills

Product code：JVCY6.0

Manufacturer's Suggested Retail Price (MSRP*)：JPY8,580

Stock	Distribution's stock
PDF Catalog	PDF
2D CAD	2Ｄ：DXF｜2Ｄ：PDF
3D CAD	3D：STEP｜3D：PDF

※MSRP is for reference purposes only. Please consult your local distributor for pricing.
Pricing outside Japan may vary due to each country's tax schedule,
tariffs, import/shipping charges, and duties imposed by customs.

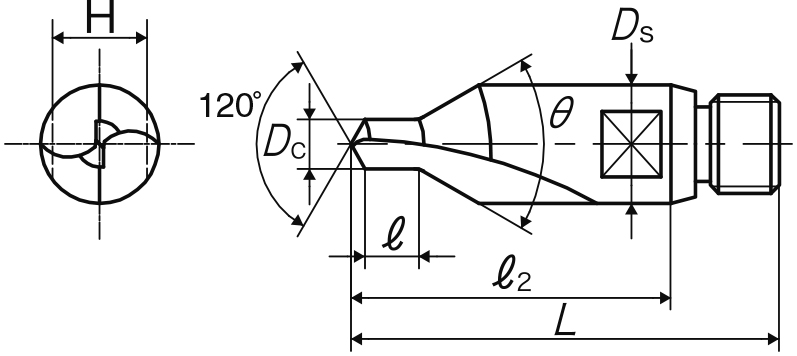

Spec

Shank dia. (Ds)	16 mm
Drill dia (Dc)	6 mm
Overall length (L)	48.5 mm
Drill length (ℓ)	6.5 mm
ℓ2	34.5 mm

H	13 mm
Angle (θ)	60°
Materials	HSS
Surface treatment	Coating
Gross Weight	55 g
Center hole diameter (Dw)	13.5 mm

Recommended machining conditions by work material

Work Material	Cutting speed n (min-1)	Feed νf (mm/min)
Low carbon steels	710	70
Medium carbon steels	710	70
High carbon steels	710	70
Alloy steels	590	60
Heat treated steel(25〜35HRC)
Heat treated steel(35〜45HRC)
Heat treated steel(45〜55HRC)
Heat treated steel(55〜63HRC)
Stainless steels(SUS)
Tool steels
Cast steels	710	70
Cast irons	350	35
Ductile cast irons	470	45
Copper
Brass
Brass castings
Bronze
Wrought aluminum
Aluminum alloy castings
Magnesium alloy die castings
Zinc alloy die castings
Titanium alloys
Nickel base alloys
Thermosetting plastic
Thermoplastic resin
