JO-CDS V Type A 5 X 60°

【英】センタ穴ドリル詳細

Joint- Low Helix Center Drills-Type A 60° , Coated

Design for Taps
JVCY5.0

Product code:JVCY5.0

Manufacturer's Suggested Retail Price (MSRP*):JPY6,270

Stock Distribution's stock
PDF Catalog PDF
2D CAD 2D:DXF2D:PDF
3D CAD 3D:STEP3D:PDF
※MSRP is for reference purposes only. Please consult your local distributor for pricing.
Pricing outside Japan may vary due to each country's tax schedule,
tariffs, import/shipping charges, and duties imposed by customs.

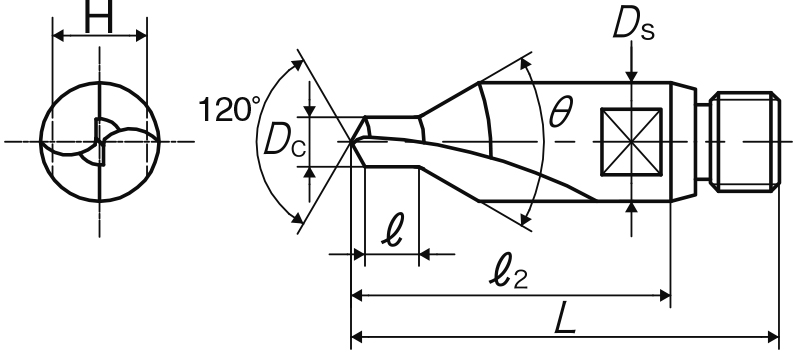

Spec

Shank dia. (Ds) 12 mm
Drill dia (Dc) 5 mm
Overall length (L) 43.5 mm
Drill length (ℓ) 5.5 mm
ℓ2 32.5 mm
H 10 mm
Angle (θ) 60°
Materials HSS
Surface treatment Coating
Gross Weight 32 g
