AUCDS 6X60゚X16

【英】センタ穴ドリル詳細

Low helical fluted A type 60° Single-Ended Coated Center Drill

Design for Center drills
YL66.00ZNEVP

Product code:YL66.00ZNEVP

Manufacturer's Suggested Retail Price (MSRP*):JPY9,180

Stock Distribution's stock
PDF Catalog PDF
2D CAD 2D:DXF2D:PDF
3D CAD 3D:STEP3D:PDF
※MSRP is for reference purposes only. Please consult your local distributor for pricing.
Pricing outside Japan may vary due to each country's tax schedule,
tariffs, import/shipping charges, and duties imposed by customs.

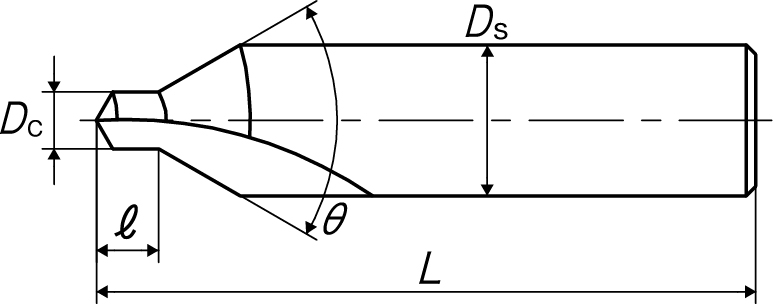

Spec

Shank dia. (Ds) 16 mm
Drill dia (Dc) 6 mm
Overall length (L) 70 mm
Drill length (ℓ) 6.4 mm
Angle (θ) 60°
Materials HSS
Surface treatment Coating
Gross Weight 87 g
Center hole diameter (Dw) 13.5 mm

Recommended machining conditions by work material

Work Material Cutting speed
n
(min-1)
Feed
νf
(mm/min)
Low carbon steels
Medium carbon steels 940 190
High carbon steels 940 190
Alloy steels 940 140
Heat treated steel(25〜35HRC) 710 140
Heat treated steel(35〜45HRC)
Heat treated steel(45〜55HRC)
Heat treated steel(55〜63HRC)
Stainless steels(SUS)
Tool steels
Cast steels 940 190
Cast irons 940 190
Ductile cast irons 940 190
Copper
Brass
Brass castings
Bronze
Wrought aluminum
Aluminum alloy castings
Magnesium alloy die castings
Zinc alloy die castings
Titanium alloys
Nickel base alloys
Thermosetting plastic
Thermoplastic resin
