AUCES 5X60ﾟX12 | YAMAWA MFG. Co., Ltd.

【英】センタ穴ドリル詳細

High helical fluted A type 60° Single-Ended Coated Center Drill

Design for Center drills

Product code：YH65.00ZNEVM

Manufacturer's Suggested Retail Price (MSRP*)：JPY3,940

Stock	Distribution's stock
PDF Catalog	PDF
2D CAD	2Ｄ：DXF｜2Ｄ：PDF
3D CAD	3D：STEP｜3D：PDF

※MSRP is for reference purposes only. Please consult your local distributor for pricing.
Pricing outside Japan may vary due to each country's tax schedule,
tariffs, import/shipping charges, and duties imposed by customs.

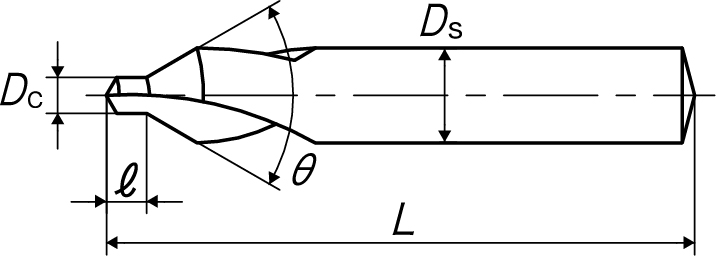

Spec

Shank dia. (Ds)	12 mm
Drill dia (Dc)	5 mm
Overall length (L)	65 mm
Drill length (ℓ)	5.3 mm

Angle (θ)	60°
Materials	HSS
Surface treatment	Coating
Gross Weight	47 g
Center hole diameter (Dw)	10 mm

Recommended machining conditions by work material

Work Material	Cutting speed n (min-1)	Feed νf (mm/min)
Low carbon steels	1300	155
Medium carbon steels	1300	220
High carbon steels
Alloy steels
Heat treated steel(25〜35HRC)
Heat treated steel(35〜45HRC)
Heat treated steel(45〜55HRC)
Heat treated steel(55〜63HRC)
Stainless steels(SUS)	640	60
Tool steels
Cast steels
Cast irons
Ductile cast irons
Copper
Brass	1900	340
Brass castings	1900	340
Bronze
Wrought aluminum	1900	340
Aluminum alloy castings	1900	340
Magnesium alloy die castings
Zinc alloy die castings
Titanium alloys
Nickel base alloys
Thermosetting plastic
Thermoplastic resin
