N-RSD R5 M5X0.8 (25) | YAMAWA MFG. Co., Ltd.

【英】ダイス詳細

JISNew Rolling Dies

Design for Dies

Product code：NRGT5.0K

Manufacturer's Suggested Retail Price (MSRP*)：JPY37,900

Stock	Limited distribution's stock
PDF Catalog	PDF

※MSRP is for reference purposes only. Please consult your local distributor for pricing.
Pricing outside Japan may vary due to each country's tax schedule,
tariffs, import/shipping charges, and duties imposed by customs.

Spec

Materials	HSS
Class	R5

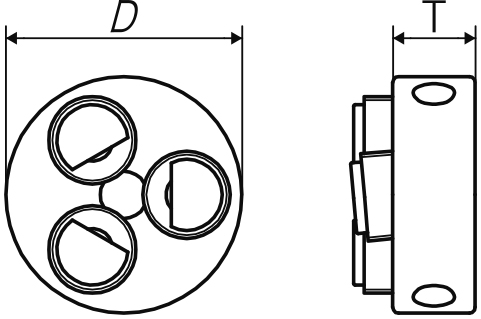

Outside dia. (D)	25 mm
Thickness (T)	9 mm

Chamfer length (front)	2P
Gross Weight	49 g
Bar Diameter	JIS 2: 4.41,JIS 6g: 4.41
Major Diameter of External Threads (dMax)	JIS 2: 4.976,　　　　　JIS 6g: 4.976
Major Diameter of External Threads (dMin)	JIS 2: 4.826,　　　　　JIS 6g: 4.826

Table of threading speed recommended for each work material

Low carbon steels	3～6 m/min
Medium carbon steels	3～6 m/min
High carbon steels
Alloy steels
Heat treated steel (25〜35HRC)
Heat treated steel (35〜45HRC)
Heat treated steel (45〜55HRC)
Heat treated steel (55〜63HRC)
Stainless steels (SUS)	3～6 m/min
Tool steels
Cast steels
Cast irons
Ductile cast irons

Copper
Brass	3～6 m/min
Brass castings
Bronze
Wrought aluminum
Aluminum alloy castings
Magnesium alloy die castings
Zinc alloy die castings
Titanium alloys
Nickel base alloys
Thermosetting plastic
Thermoplastic resin
